Catalog of Audio converter IPs: sADC-H1-LR.02 TSMC 28 nm

24-bit four channel audio ADC with 95 dB Dynamic Range, compatible with Automotive requirements

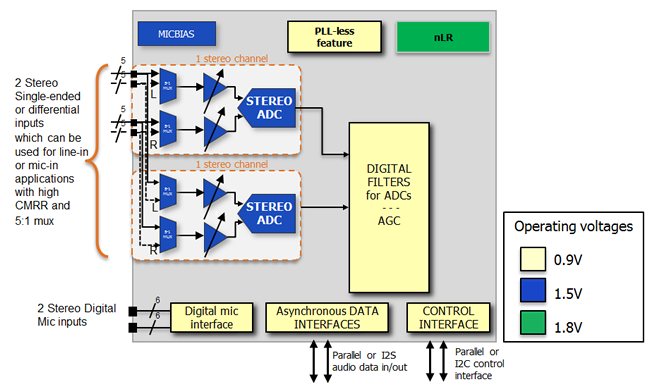

The sADC-H1-LR.02 is a mixed (analog and digital) Virtual Component containing four mono ADCs, and additional functions offering an ideal mixed signal front-end for low power and high quality audio applications.

Key Benefits

  • Patented PLL-less solution: generate all the sampling frequency through a single master clock frequency with no need of audio PLL
  • Embedded low noise voltage regulator for best resilience to power supply noise
  • Optimal sound recording performance thanks to high dynamic range and Automatic Gain control feature


I want more information on sADC-H1-LR.02

Key Performances

  • 95 dB Dynamic range
  • -85 dB CMRR
